BY-1000 Sugar Coating Machine

Introduction

Tablet coating machine is mainly used for coating, glazing, granulating in the pharmaceutical industry, it is also used in the foodstuff, such as sugar coating beans, edible nuts, seeds or candy. Such as marble chocolate, peanut, fried flour-coated peanut, KACANG JEPUN, dumplings, crispy fruit and spicy bean and so on.

Main Features

The tablet will have bright and smooth surface after being coated and polished. It protects the tablet core from being oxidized and deteriorated, from being affected with damp or volatilizing.It also covers the peculiar smell of tablet core, makes it easy for distinguishing and dissolving in human stomach intestine system. And the chocolate, peanut, bean, candy will be more delicious after being coated.

Main Technical Parameters

Model	BY-1000
Dia. of pot	1000mm
Production capacity	50-70kg/batch
Regulating range of air temp.	Normal temperature-80℃
Regulating range of motor power	0～32r/min
Main motor	1.5kw
Power of blower fan	200w
Dimensions(L *W * H)(mm)	1300*1000*1685
Net weight	300kg
Air compressor	Self-prepare
Total heating power	6kw
Solenoid valve	G1/8＂

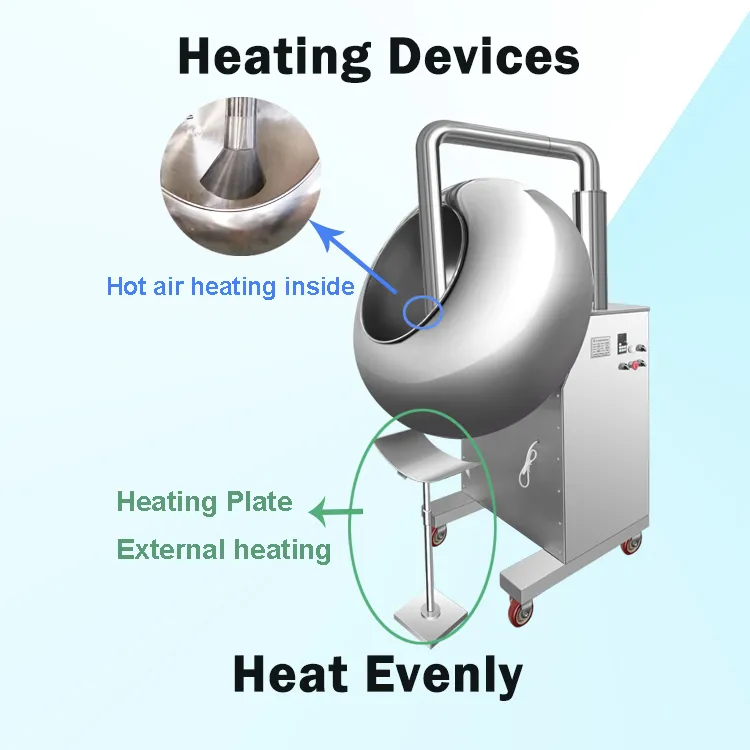

Machine Detail

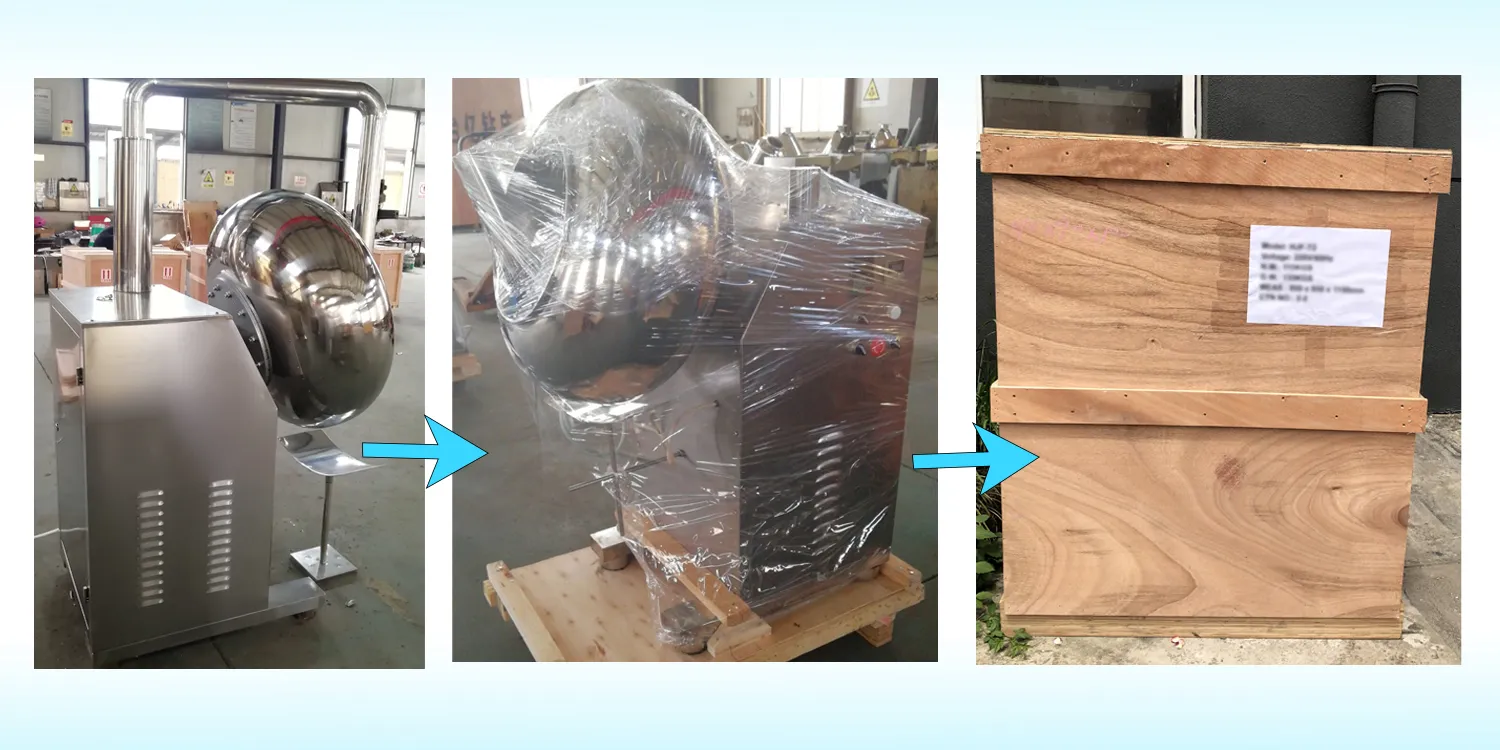

Packing



Applications
