Introduction
Chinese water chestnut-type coating machine is mainly used for the pharmaceutical industry in the compaction of the tablets, pills, and coated particles can also be used in the food industry in the mechanism or candy coating.The sugar-coated tablet coated after being coating polished has bright and smooth surface. It protects the tablet core from oxidizing and deteriorating, from being affected with damp or volatilizing, it also covers the peculiar smell of tablet core, makes it easy for distinguishing and dissolving in human stomach intestine system.
Main Features
1. The control system composed of PLC and HMI is reasonably designed, flexible programming, can adapt to the needs of various pharmaceutical processes, works reliably, has stable performance, and meets GMP requirements.
2. Under the action of the streamlined deflector agitator, the plain sheet flips smoothly and exchanges frequently, which eliminates the phenomenon of falling and colliding from a high place, eliminates fragments and knocking edges, and improves the yield rate. The upper surface of the deflector plate is narrow, which avoids the adhesion of the dressing on its surface, saves the dressing, and improves the quality of the drug.
3. The rotation radius of the roller changes at any time with the change of pressure, and the output slurry and spraying amount are automatically balanced, which stabilizes the atomization effect, simplifies the spray system, prevents the spray gun from clogging, saves the dressing, and the cleaning is simple and there is no dead angle.
Main Technical parameters
|
Diameter. of Pot |
1250mm |
|
Production Capacity |
80-150kg/time |
|
Regulating Range of Air Temp. |
Normal Temperature-80℃ |
|
Regulating Range of Motor Power |
0～28r/min |
|
Main Motor |
2.2kw |
|
Power of Blower Fan |
370w |
|
Air Compressor |
Self-prepare |
|
Total Heating Power |
6kw |
|
Solenoid Valve |
G1/8＂ |
Machine Detail
 |

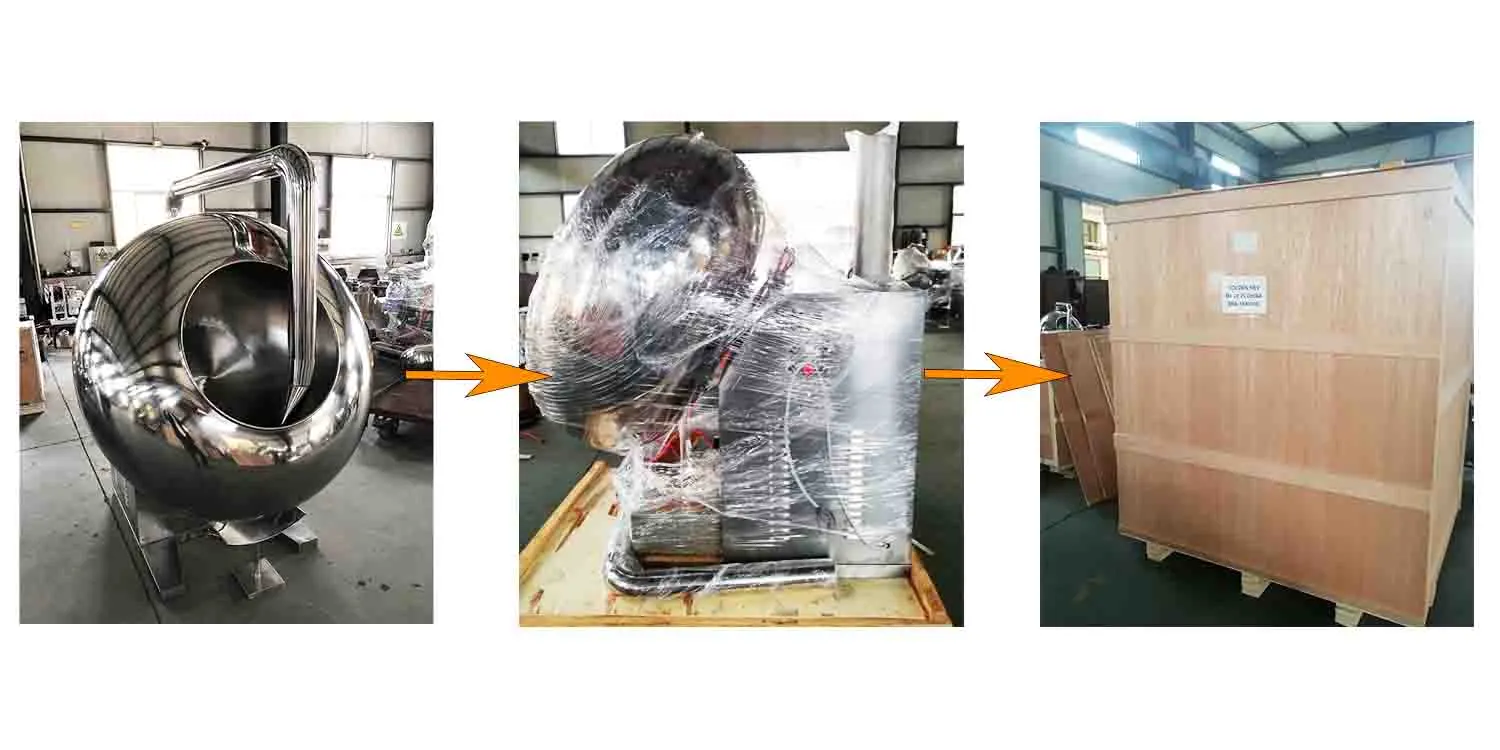

Packing
 |
Applications
 |
 |
