Main Features
The product uses the principle of photoelectric induction to count and divide the particles sensed. The machine adopts vibrating blanking and then rotating centrifugal discharging to count the particles one by one. A reversing solenoid valve is set at the rear of the track to make the falling track switch left and right. When the left side is filled according to the set quantity, it will switch to the right side for filling. At the same time, the bottle under the outlet will be replaced manually, so as to work continuously.
Main Technical Parameters
|
Model |
HYL-4B |
|
Capacity |
1000-4000pcs/min |
|
Materials |
Tablet, capsule, sugar pills |
|
Loading Range |
2-9999 (adjustable) |
|
Voltage, Power |
AC 220V/50HZ 110V/60HZ 0.1KW |
|
Bottle Height |
40-190MM |
|
Bottle Mouth |
10-500m round and square bottle |
|
Precision |
More than 99.7% |
|
Hopper Capacity |
10L |
|
N.W |
65kg |
|
G.W |
87KG |
|
Overall Size |
820*600*720MM |
|
Remarks |
The productivity is related to the capsule/tablet variety, size and quantity in each bottle |

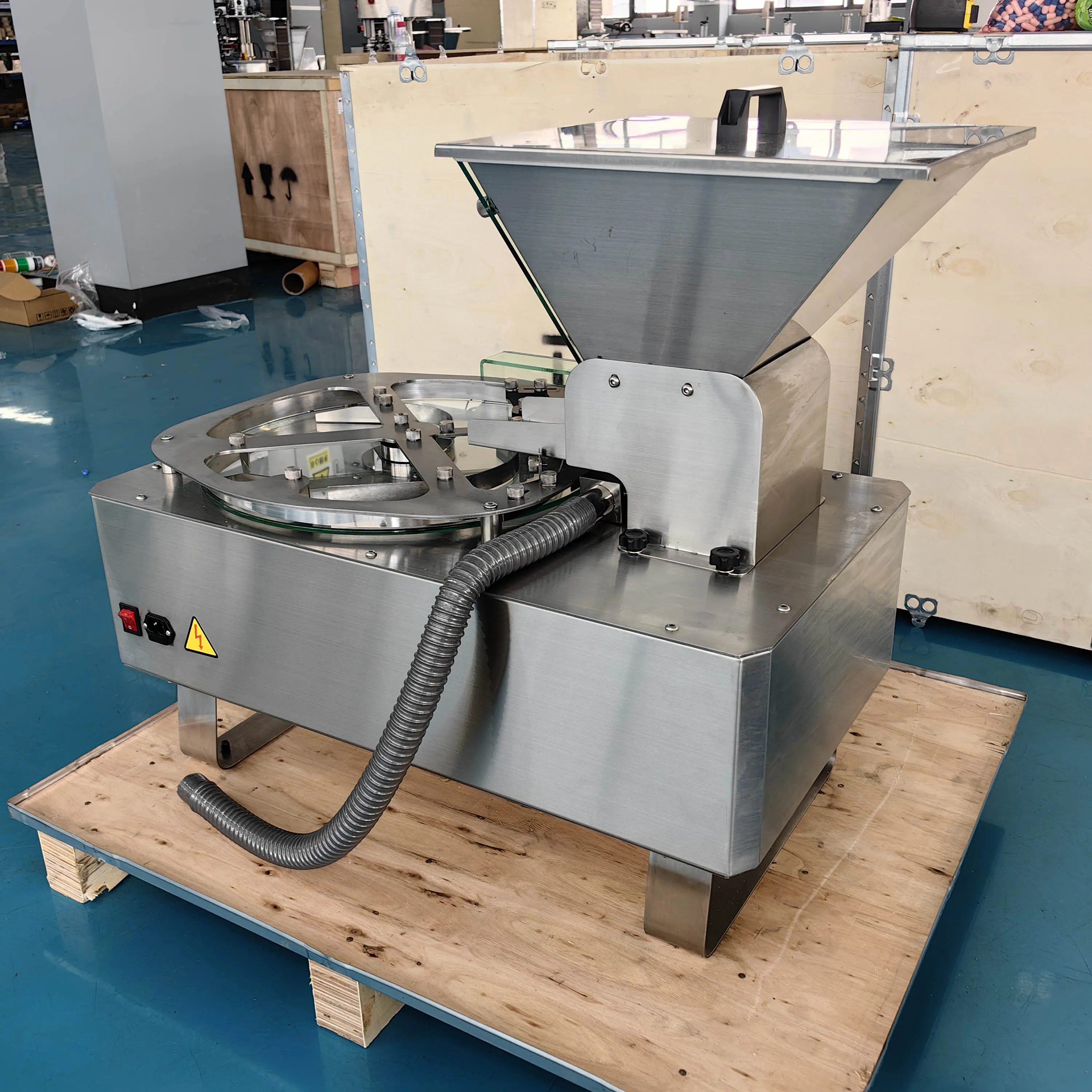

Machine Details
 |
 |

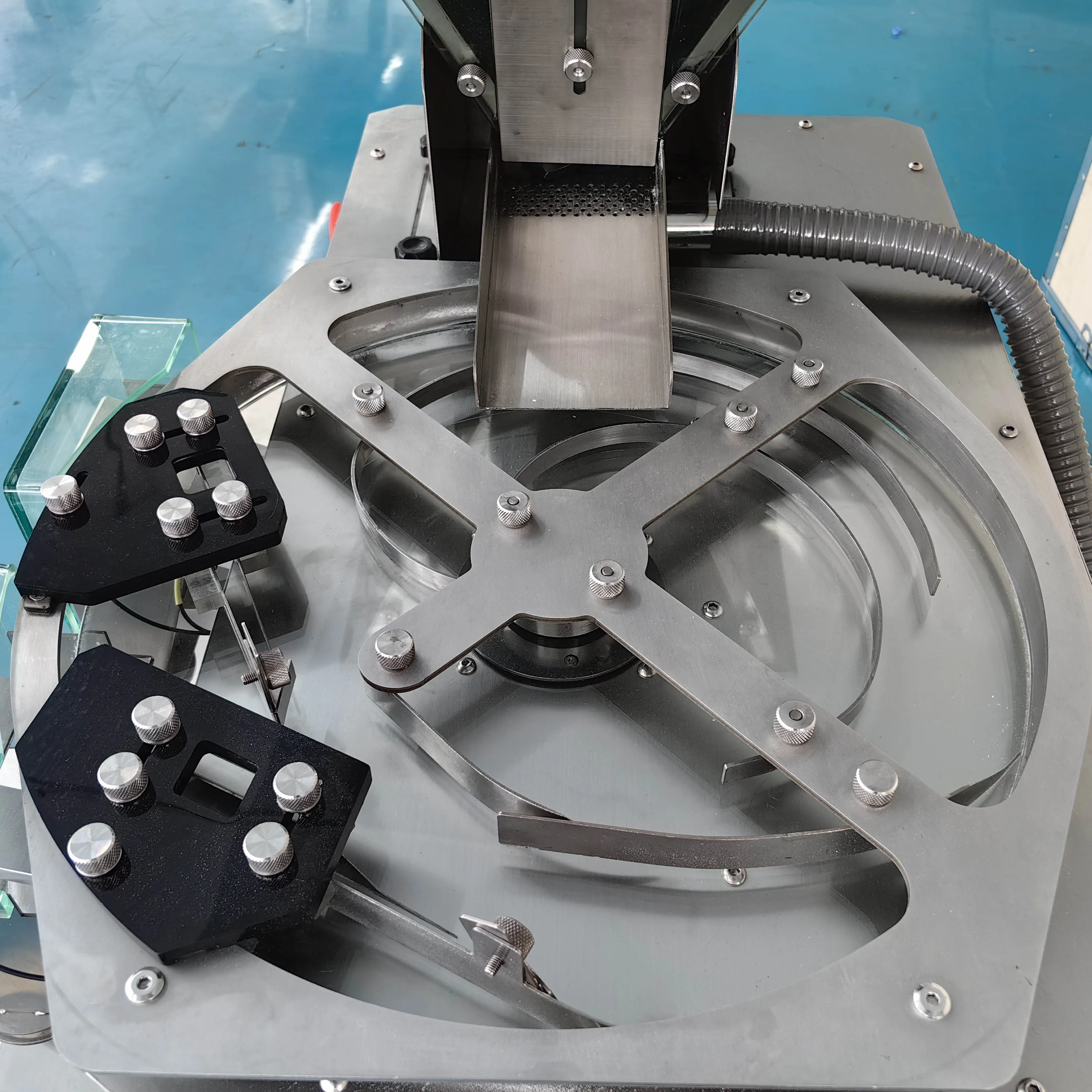

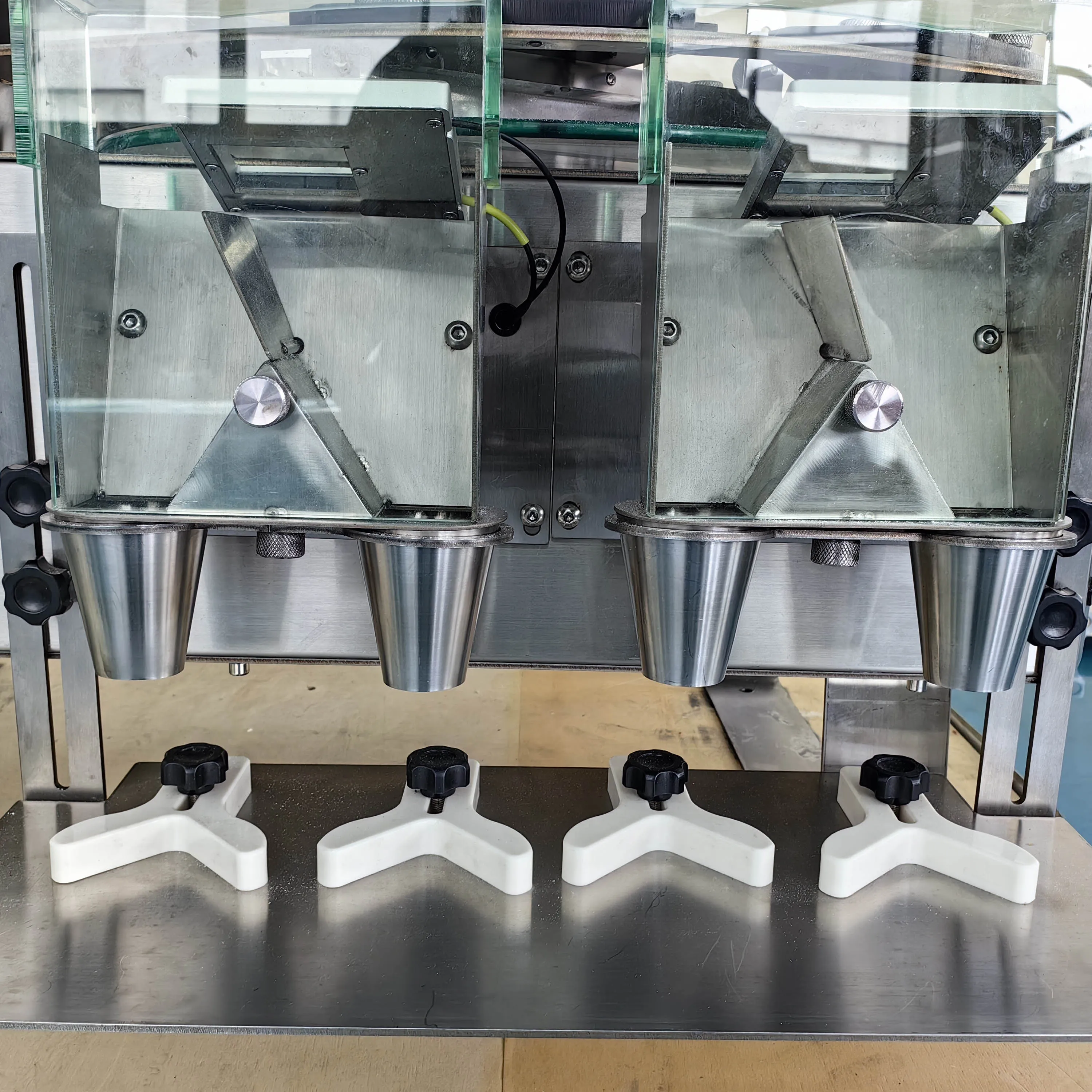

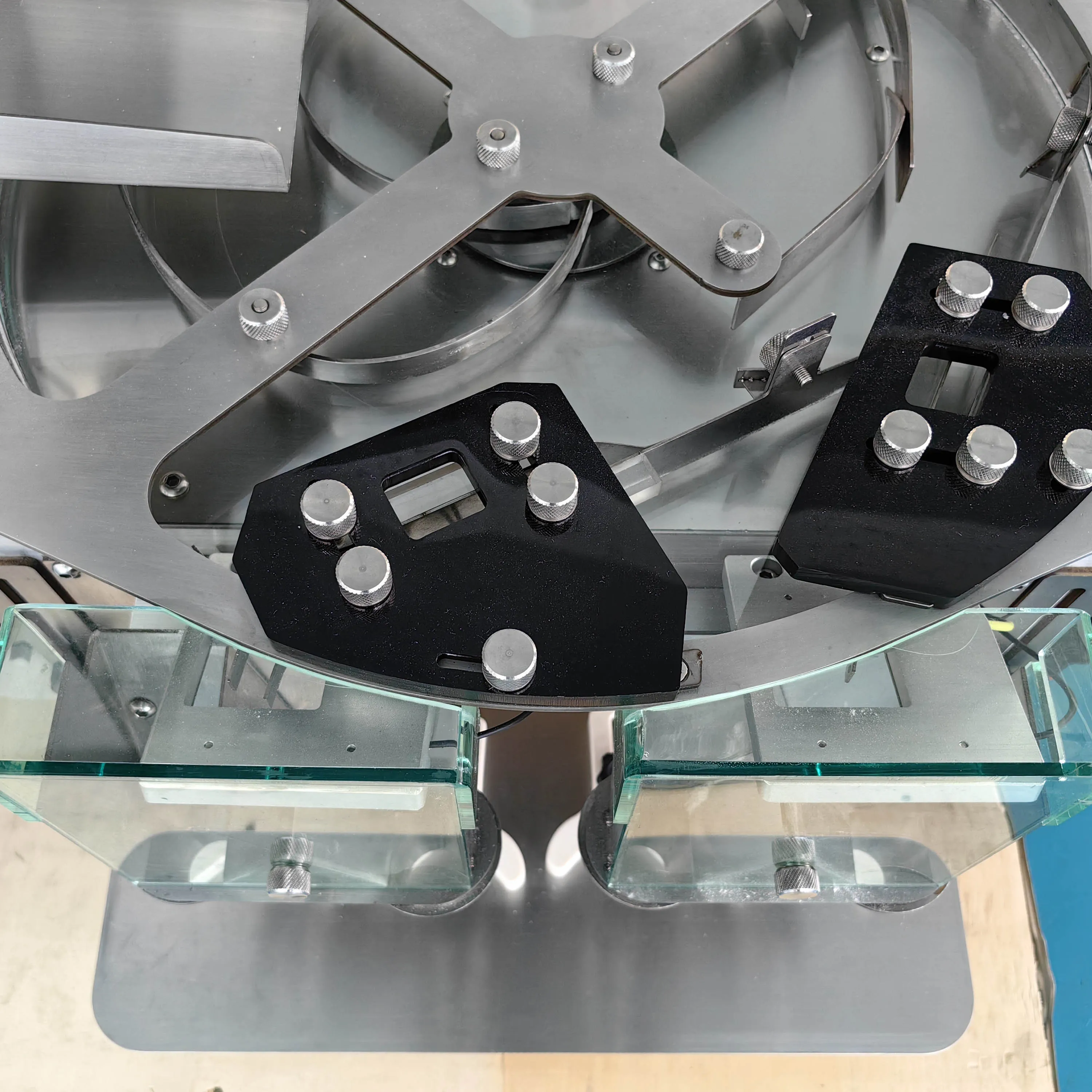

| Four filling nozzles | Can be connected with vacuum cleaner |
 |
 |
| Vibrating feeding | No mold change for different tablet/capsule size |

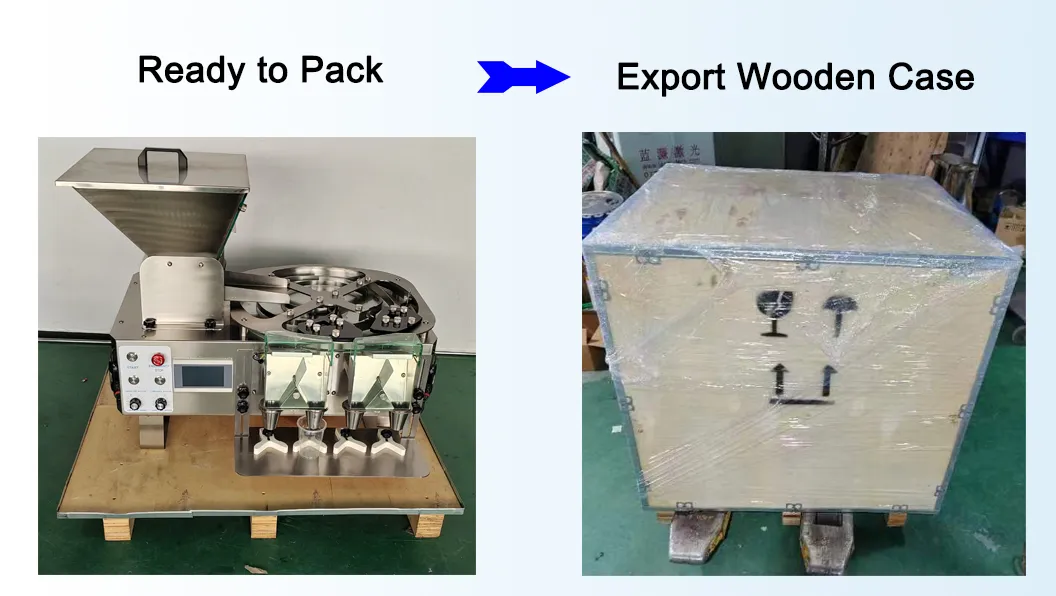

Packing
 |
Applications
 |
 |
