HTFS-80 Tube Filling and Sealing Machine

Introduction

This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for Aluminum tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.

Main Features

■ This Product have 12 stations, can choose different station and equip corresponding manipulator to meet different type of tail folding, sealing requirement for Aluminum tubes, It is a multi-purpose machine.

■ Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).

■ Tube storage can through motor to adjust up-down height as per different tube length. And can With external reversal feeding system, makes tube charging more convenient and tidy.

■ The mechanical linkage photo sensor precision tolerance is less than 0.2mm. reduce the chromatic aberration scope between tube and eye mark.

■ Light, electric, pneumatic integrative control, No tube, no filling. Lower pressure, auto display (alarm); The machine stop automatically if tube error or open the safety door.

■ Double-layer jacket instant heater with inside air heating, it won’t damage the pattern outer wall of tube and achieves firm and beautiful sealing effect.

Main Technical Parameters

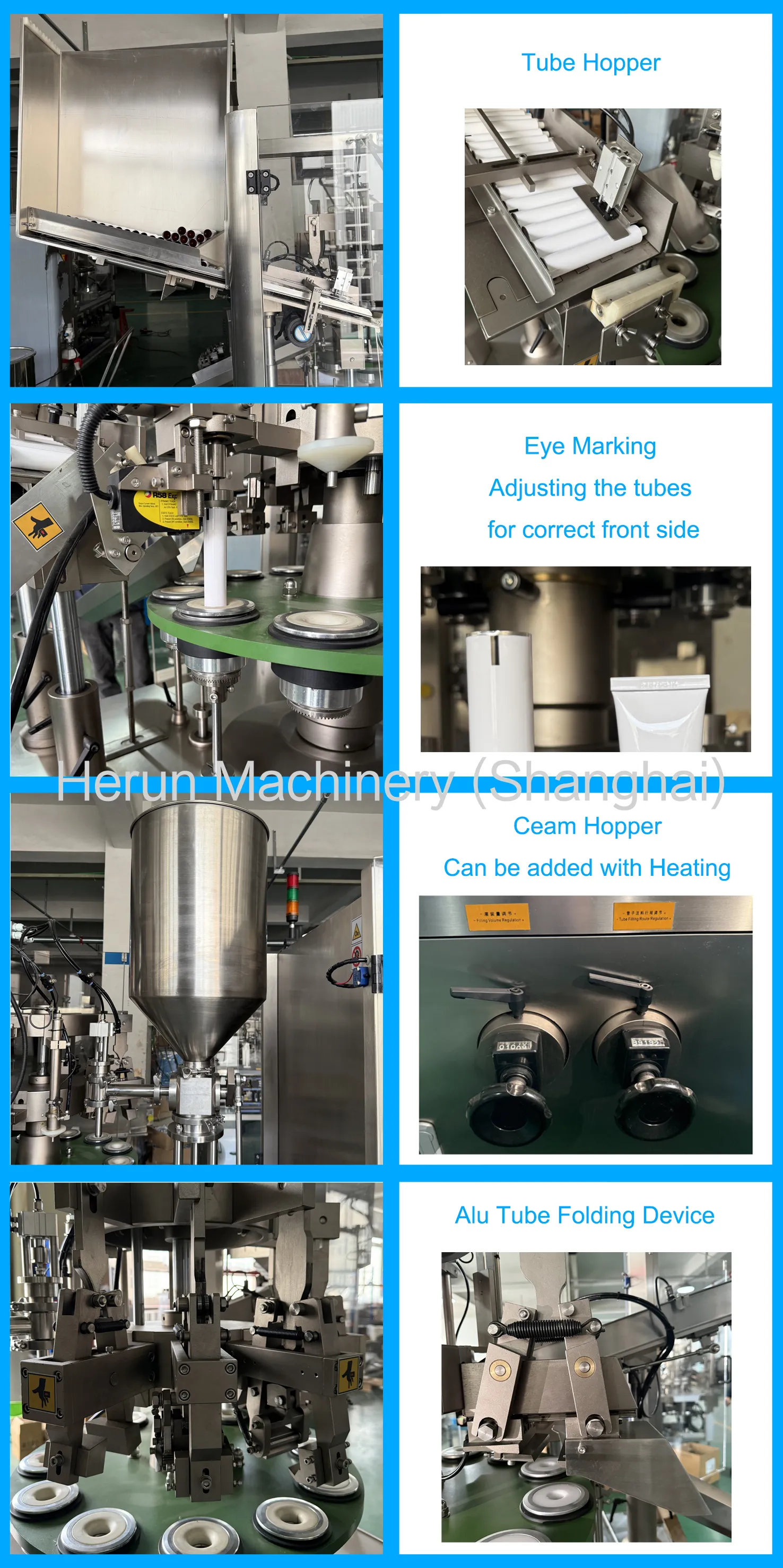

Machine Deatils

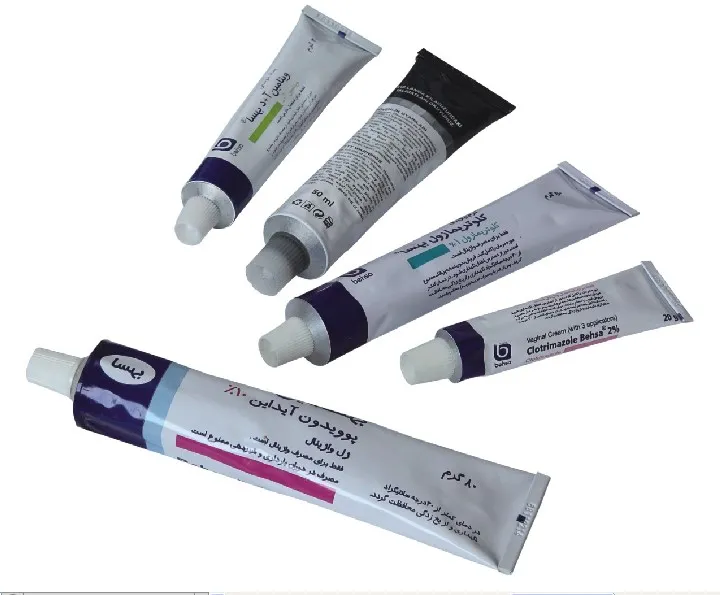

Application

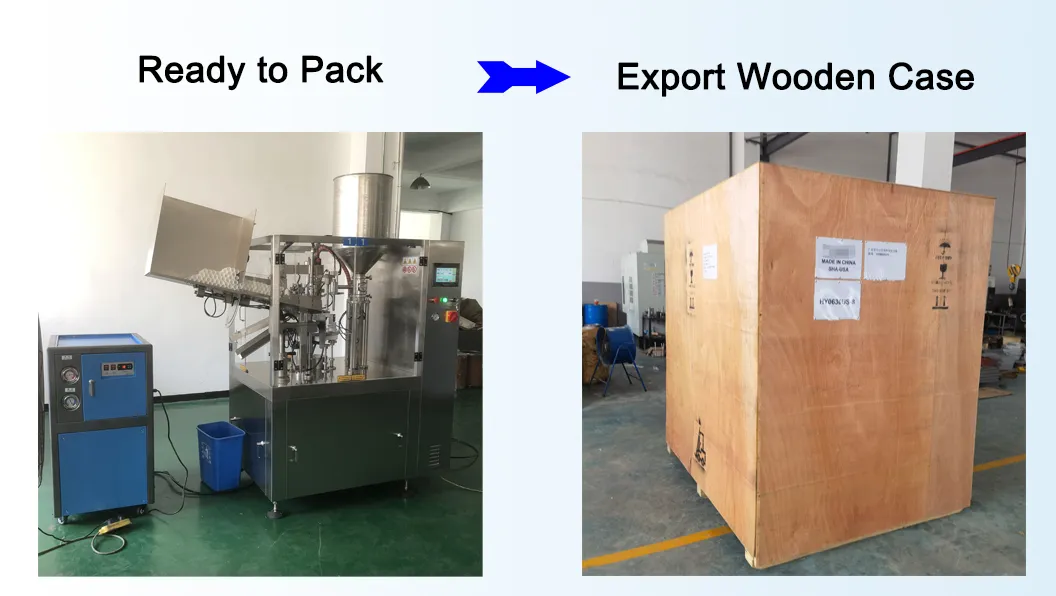

Packing
